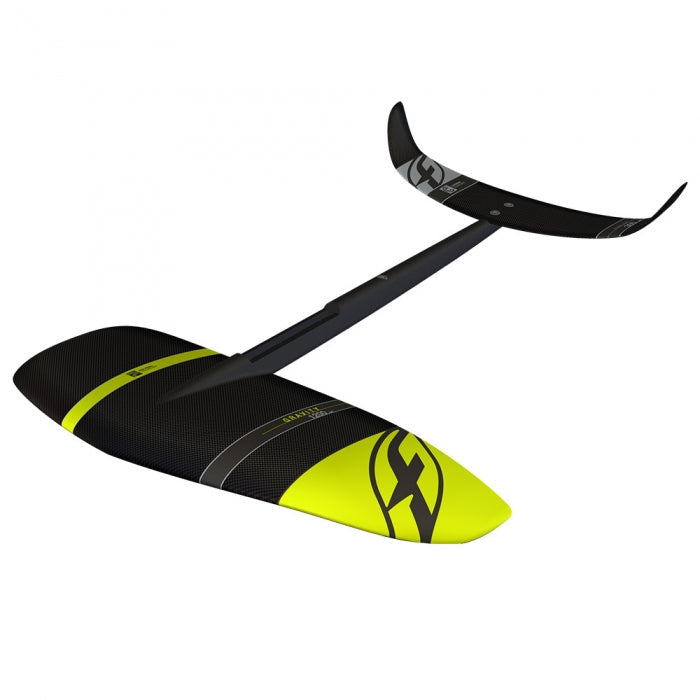

F-one foil GRAVITY​ PLANE 1200 2020

School kite foil / Wave riding

Area 1200 cm² Aspect ratio 3.2

FW Gravity 1200 + Gravity Fuselage Tail + Stab C300 + Tool

The F-ONE GRAVITY 1200 wing is entirely dedicated to surfing on a foil.

- Easy progressive lift
- Maximum maneuverability
- Perfect balance between speed and turning

PRESENTATION:
Its design is a significant evolution from our previous 1200 wing.
- Optimized connection with our integrated Titan Connection especially developed for larger wings
- new and thicker section profile for an early and very progressive lift-off
- evolution of the arch and rake of the wing to best combine maneuverability and control

Design targets ease of use to surf and carve some lines:
- Early lift for take-off
- Easy entry into the turns for some intuitive lines
- Perfect maneuverability allowing sharp turns
- Total speed control to master your surf

Targeted at people who want a wing to foil on a variety of waves from small and mellow to taller and faster.

Very fluid through the turns, allowing to draw tight or long curves with good speed control and good pumping to go after the next wave.

Built with pre-preg carbon for the best weight to strength ratio, with a super light core.

Titan Connection: the wing connects directly to the mast via the Titan mast foot and the fuselage is split in two parts in order to simplify transportation. This setup offers better load transmission and better stiffness throughout the different parts for maximum control.

WINGS:

Area: 1200 cm²
Aspect Ratio:  3.2

Its design is a significant evolution from our previous 1200 wing.
- Optimized connection with our integrated Titan Connection especially developed for larger wings
- new and thicker section profile for an early and very progressive lift-off
- evolution of the arch and rake of the wing to best combine maneuverability and control

Design targets ease of use to surf and carve some lines:
- Early lift for take-off
- Easy entry into the turns for some intuitive lines
- Perfect maneuverability allowing sharp turns
- Total speed control to master your surf

MAST:

The Mast Top Parts are the connecting parts between the aluminium mast and the foil board. They fit directly onto the aluminium mast and are available for various standards.

The F-ONE aluminum mast can be used for all disciplines, kite, surf, sup and windsurf. The profile is extruded with precision from the 6063 aluminum block. The shape of its section benefits from our years of experience in kitefoiling to provide the best gliding feel while keeping the strength up and the weight down. It comes with two stainless steel Helicoil inserts at the bottom and at the top to fasten the connecting parts and is therefore fully modular. The aluminum mast can be used on every foil of the range and it is very easy to jump from one length to another.  A number of parts are available for board connection (Plate, KF, Deep KF, Tuttle).

Available lengths: 45cm, 55cm, 65cm, 75cm, 85cm, 95cm
Section thickness: 16mm
Section chord: 114mm
