MAST (75cm)

75cm Mast
The 75cm mast is your “go to” mast, it can do it all in any conditions.
It will allow the rider to lean hard upwind, float you down wind without touching down and help you glide through your transitions.  The mast flares at the top and bottom of the mast to reduce torsion and reinforce the connection points.
It comes with a Deep Tuttle (Recommended). The Mini Tuttle at the bottom fits easily into the fuselage. The top and bottom inserts simply connect to the board and foil thought interchangeable stainless steel inserts. The four stainless inserts are custom made to our specification. They are interchangeable. They are 12mm diameter so if you are traveling you can easily find a spare if you need to.

Specs
Length: 75cm
Total length with boxes: 84cm
Width: 11cm
Weight: 1.2kg

Construction
It is made in house in Raglan, New Zealand. The mast is made of over 30 pieces of prepreg carbon with a closed cell foam core. Almost all the pieces of carbon run the entire length of the mast so that the top and bottom inserts are going through the same piece of carbon.  It is made with a mix of twill, Uni-directional and Bi axial prepreg carbon. The leading and trailing edge of the foil are solid carbon and epoxy.  This mast is made to play so you don’t have to worry about your gear, just focus on your riding.

The finish
Durapox (white)

Why Durapox?
The advantage of the white Durapox is that it does not heat up in the sun and protects the carbon from UV’s that are tough in NZ and Australia.  It also allows the owner of the foil to have a race finish like the America’s Cup boats. Also, if you hit or scratch your mast you can sand it or build it back up very easily.

Compatibility/Connection System
Deep Tuttle

FOIL AND FUSELAGE

The Foil and Fuselage
The J Shapes freeride foil was designed to be tough, playful and glide effortlessly in all conditions.  The one piece prepreg carbon construction will give you the peace of mind to jump, wave ride, cruise and race in all conditions.
It is balanced to cruise in very light winds and rip in stronger winds. It will foil up at around 9 knots and will easily hit 25 knots and go to the upper 20’s in total comfort.
This foil was made for all conditions so you can push the limits or cruise.

Design:
The ease of the J Shapes Freeride foil comes from its 58cm by 14cm front wing. The profile of the front foil will allow you to plane up early in light winds and be in full control at top speeds.
Regardless of the speed, your weight will still be evenly distributed. That means you do not need all your weight forward when hitting top speeds.
The front foil is 9cm high meaning that it is very stable in all direction and will allow the rider to lean and carve into turns without spinning out.
The fuselage from front wing to tail is 65cm giving you good balance.
The rear foil is 35cm by 8.5 to give you a strong balance point and stabilizer.
The connection to the mast is done through a Mini Tuttle box, 120mm x 25mmx 19mm and screws through two interchangeable 18.5 mm stainless inserts.  This gives an extremely strong connection to the mast and if you ever damage the threads you can just pop out the inserts and put in a new one.
The fuselage was beefed up to 35mm x 30mm to properly encase the insert and reduce torsion. If the foil has too much torsion, it will become unstable at high speeds.

Tacking and jibing:
The larger front foil and profile will greatly improve any rider’s tacking and jibing.  This foil will make you foil through your transition by giving you the constant lift and stability that you need to nail your turns.
When tacking, it will give you a long lift to finish out your upwind carve.
When jibing, it will not bounce you off or drop you down when you switch your feet, with just a bit of speed you will be able to glide through your jibes.

Jumping and Wave riding:
This is not for everyone but soon enough you will never want to part from your foil and will want to take it into the waves or the air.  It is bomb proof so jump it and have fun, practice your foiling rolls or ride a swell and wave. The sensation of the wave taking over the power of the kite is amazing.

Construction:
All of our construction is done in house in Raglan, New Zealand.
Our prepreg carbon is custom made to our specifications in Australia.
The foils are made of over 50 cuts of twill, Biaxial and uni directional carbon to maximize strength.  The core is made of closed cell foam to reduce weight.
The foil is assembled and cooked in aluminium moulds.
All the carbon pieces are cut by a CNC machine to reduce imperfections and optimize the layout.  The prepreg ensures us that all the carbon is wetted out and the high temperature curing ensures a tough product.

The Finish:
The foil is finished in white Durapox.

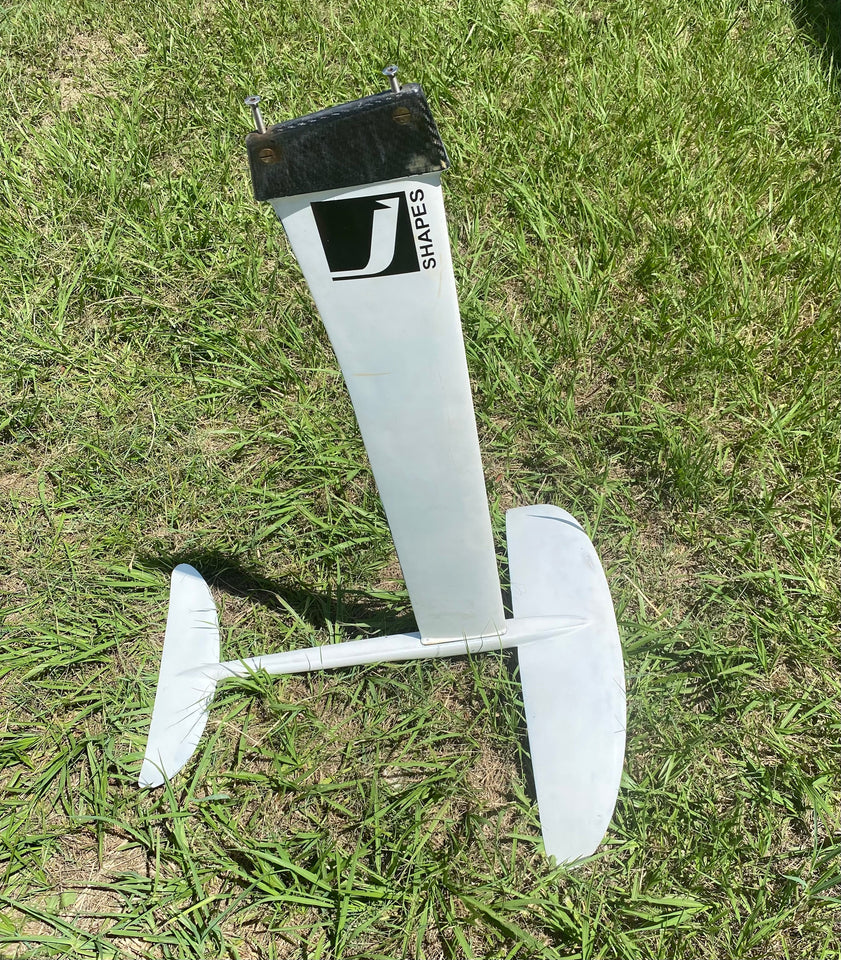

This foil and mast are used in very good condition without any significant scratches.
